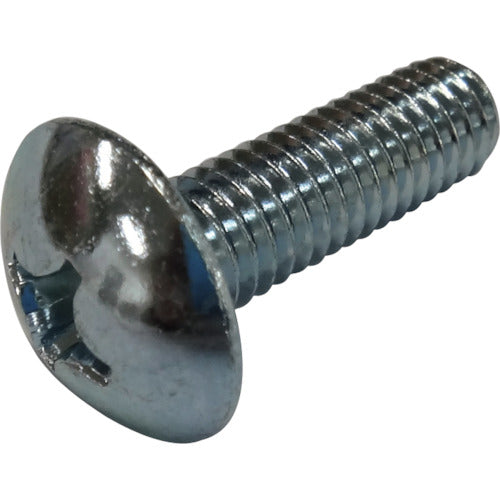

Konoe Truss Head Machine Screw, Iron, Unichrome, 5 x 20, 700 Pieces, MUSHSS-6U-520-700P, 1 Box

Catalog number: MUSHSS-6U-520-700P Features: ●Round head shape, with a lower head and larger outer diameter than pan head screws. ●The head has a larger outer diameter than other small screws, which increases the contact area with the material and provides some anti-loosening effect. ●The head is low and looks good, so it is sometimes used for design reasons. ●Unlike a dished shape, there is no need to apply "countersinking" to the material, so it can be used anywhere. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 20 ●Thread pitch (mm): 0.80 ●Compatible driver: Phillips No. 2 ●Head diameter (mm): 11.8 ●Head thickness (mm): 3.1 Material/Finish: ●Steel ●Surface treatment: Unichrome
