Konoe Hexagonal Bolt Steel Unichrome Full Thread M8 x 12 (400 Pieces) BT-SS-0812 1 Box

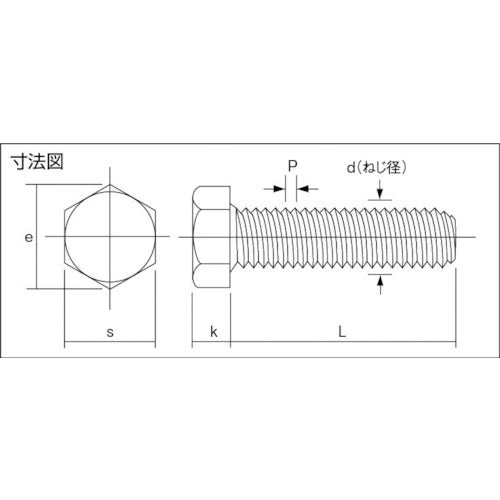

Catalogue number: BT-SS-0812 Features: ● Widely used as a general hex bolt. ● When we say bolt, we generally mean a hex bolt. Applications: ● Not normally used alone, but in combination with a hex nut to clamp parts from both sides Specifications: ● Dimensions (mm) d: M8 ● Dimensions (mm) L: 12 ● Thread pitch (mm): 1.25 ● Thread length (mm): 12 ● Strength category: 4.8 ● Surface treatment: Unichrome ● Thread type: Full thread ● Two-sided width dimension (mm): 13 ● Hexagonal height (mm): 5.5 ● Thread diameter (mm): 8 ● Neck length (mm): 12 ● Diagonal dimension (mm): 15 Material/Finish: ● Carbon steel wire for cold heading (SWCH) ● Surface treatment: Unichrome plating finish
