Konoe Hexagonal Socket Bolt Half Thread M5 x 30 (200 pieces) CS-0530 1 box

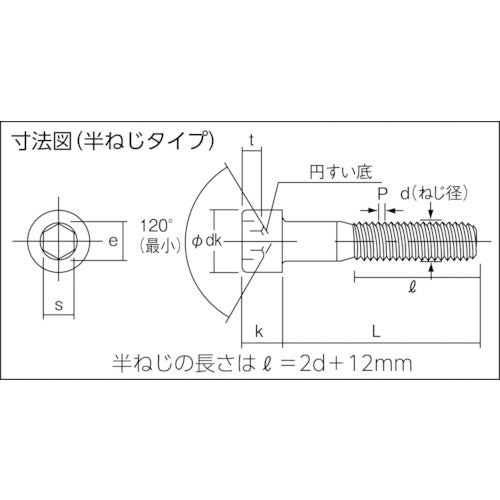

Catalog number: CS-0530 Features: ●The strength of the lower neck part, which bears the load, is stronger than that of the fully threaded type. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 30 ●Thread pitch (mm): 0.8 ●Thread length (mm): 22 ●Strength category: 12.9 ●Head diameter (mm): 8.5 ●Hexagonal hole diagonal dimension (mm): 4 ●Type: Half thread ●Hexagonal hole depth (mm): 2.5 ●Neck length (mm): 30 ●Head height (mm): 5 ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Black dye finish (iron oxide coating)
