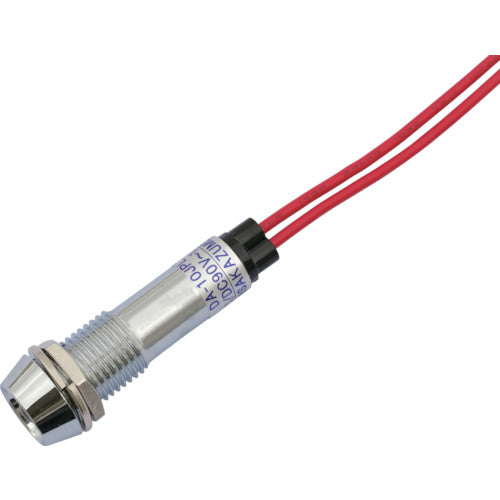

Sakazume LED indicator light DA-10JPL (AC/DC 100V connection) Φ10 Red DA-10JPL-AC/DC100V-R 1 piece

Catalog number: DA-10JPL-AC/DC100V-R Features: ●High brightness LED indicator with built-in resistor. ●Can be directly connected to AC/DC100V power supply. ●Panel cut: φ10.2 ●Light color: Red ●Lens color: Transparent ●Comes with 200mm long lead wire (UL1430 AWG24). Applications: ●Power supply indicator ●Power supply ON/OFF indicator Specifications: ●Rated voltage (V): AC/DC100 (90-132) ●Rated current (mA): 1.0-2.5 ●Connection method: Lead wire (L=200mm UL1430 AWG24) ●Metal frame ●Insulation withstand voltage: AC1800V 1 minute (between charging part and earth) ●Insulation resistance: DC500V 100MΩ or more (between charging part and earth) Material/Finish: ●Body/Flange: Brass chrome plating ●Lens: Polycarbonate resin
