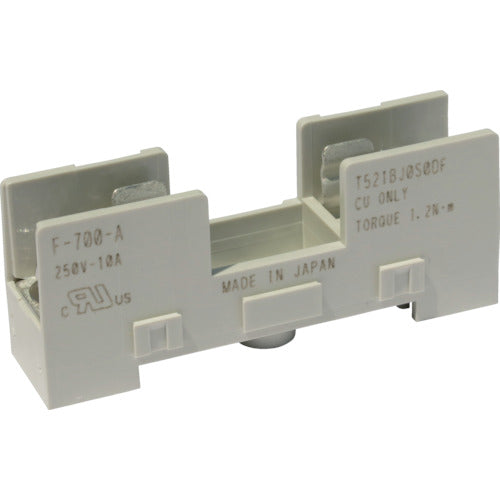

Sato Parts Fuse Holder F-700 Screw-Tightened Terminal Φ6.4X30 F-700-A 1 pc

Catalog number: F-700-A Features: ●Compatible fuse tubes are O6.4 x 30mm, O6.35 x 30mm, and O6.35 x 31.8mm. ●Horizontal connection type allows for multi-pole connection. ●Terminal fittings are screw-tightened terminals (M4x8 SEMS screws). Specifications: ●Withstand voltage (V): AC2000 (1 minute) ●Rating: 250V-10A ●Insulation resistance: DC500V, 100MΩ or more ●Acquired standards: UL and C-UL standards ●Body color: W (white) ●Terminal fittings: Screw-tightened terminals (M4x8 SEMS screws) ●Compatible rail (DIN rail) (mm): Top hat type, width 35 Material/Finish: ●PBT (UL94V-0)
