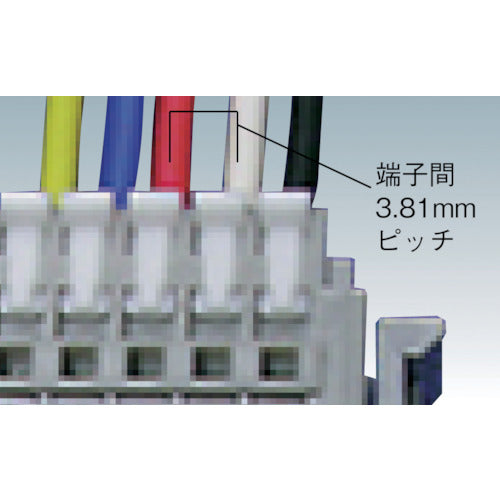

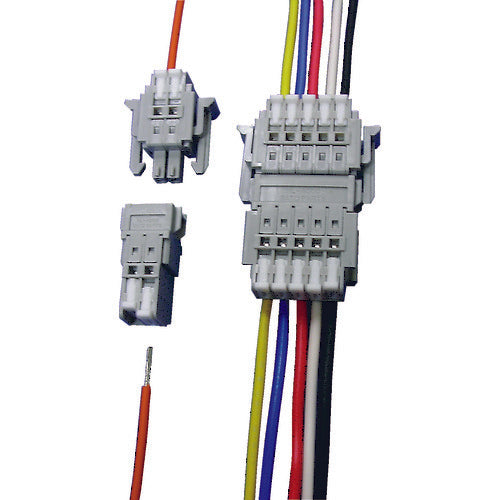

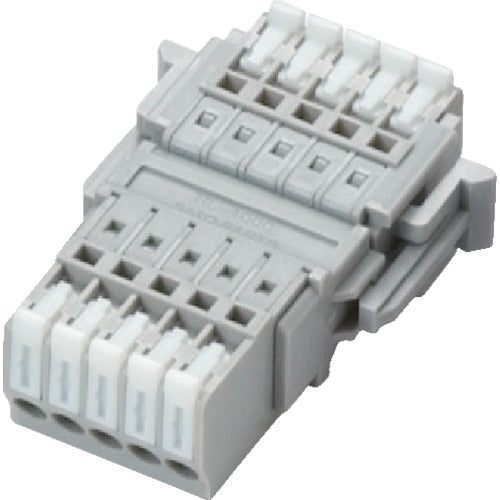

Catalog number: SL-4000-AS-5PGY Features: ●Compact design with 3.81mm pitch between terminals. This relay terminal block can be used with solid wires and stranded wires. ●Easy connection with one touch using the button locking mechanism. ●Direct wiring can be achieved by simply stripping the insulation without soldering. (Striped wire length 9mm) Applications: ●As a relay terminal block for various sensors and signals. Specifications: ●Color: Gray ●Number of poles: 5 ●Length (mm): 47.5 ●Width (mm): 34.24 ●Height (mm): 14.7 ●Type: For spring-type relays ●Rating: DC300V-5A ●Insulation resistance: DC500V, 100MΩ or more ●Withstand voltage: AC2000V (1 minute) Material/Finish: ●Body: Nylon 66 ●Button: Modified polyphenylene ether
