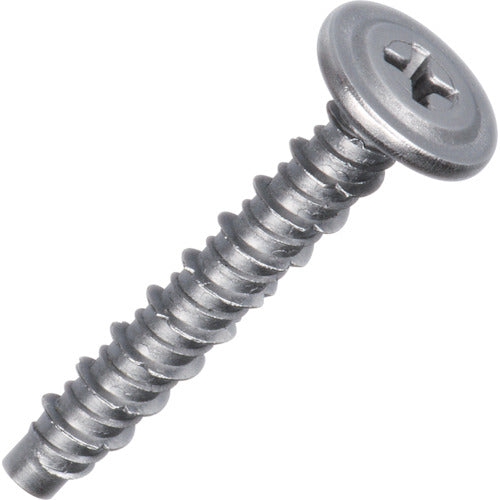

Sanko Amera Screw AMC-SD Type Stainless Steel (180 pieces) AMC-433SD 1 PK

Catalog number: AMC-433SD Features: *Screw-fixed anchor exclusively for extruded cement boards. *No drill bit required, designed to maximize thickness of attachment. *Can be installed in both hollow and solid areas. Applications: *For extruded cement boards. *For fixing pipe saddles, metal fittings, etc. Specifications: ●Screw designation: 4.0 ●Screw length (mm): 25 ●Total length (mm): 33 ●Drill hole diameter (mm): 3.2 ●Attachment thickness (mm): 8 ●Maximum tensile load (kN): 3.0 ●Maximum attachment thickness (mm): 8 ●Neck length (mm): 33 ●Maximum working length (mm): 25 ●Drill diameter (mm): 3.2 ●Compatible bit: TB-2 ●Cross hole number: 2 ●Nominal diameter (mm): 5.0 ●Head height (mm): 2.2 ●Head diameter (mm): 12.0 ●Maximum tensile load (kN): 3.0 ●Accessories: 1 drill (AMD-3.0 x 90D) ●Packed Material/Finish: ●Stainless steel (SUS410) ●Surface treatment: SPAC treatment Set contents/Accessories: ●1 Amera drill ●Amera drill type: AMD-3.0 x 90D Note: ●The maximum tensile load is the catalog value when using an Amera Drill on an extruded cement board 60 mm thick.
