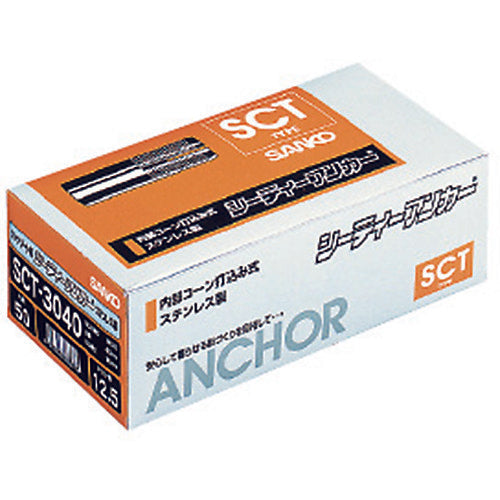

Sanko CT Anchor Stainless Steel SCT-625 100 Pieces

Catalog number: SCT-625 Features: ●Uniform application on concrete surfaces for aesthetic appeal. ●Application completion can be confirmed by using the dedicated hand holder. ●Main dimensions based on JCAA certified and SHASE-S standard products. ●Internal cone driving type for less variation in application. ●Uniform application on concrete surfaces for aesthetic appeal. Applications: ●For concrete ●Installation of pipe hanging hardware, light ceiling construction, air conditioning duct installation, cable rack hanging, scaffolding installation, etc. Specifications: ●Screw size: M6 ●Outer diameter (mm): 8.0 ●Total length (mm): 25 ●Screw length (mm): 10 ●Drill diameter (mm): 8.5 ●Maximum tensile load (kN): 6.7 ●Boxed Material/Finish: ●Stainless steel (SUS304 series) Note: ●Maximum tensile load is the value when concrete strength Fc=21N/[[MM2]]. ●A dedicated hand holder is required for installation.
