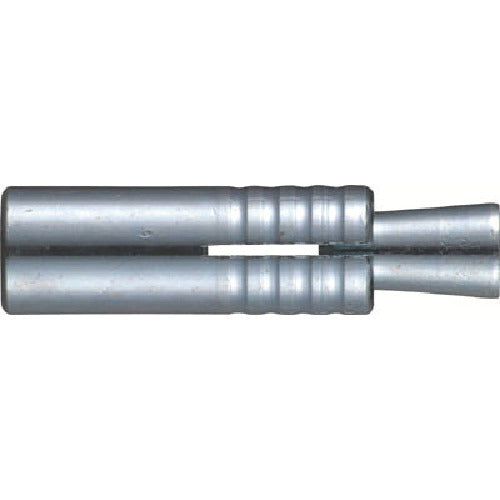

Sanko Techno Grip Anchor GA Long Type Steel Millimeter Screw GA-16ML 15 Pieces

Catalog number: GA-16ML Features: * Applications can be expanded by selecting the bolt according to the specifications. * The anchor does not get in the way even after the equipment (facilities) is removed. Uses: ●For concrete●Installation of pipe hanging hardware, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ●Screw size: M16●Outer diameter (mm): 21.5●Total length (mm): 100●Screw length (mm): 30●Drill diameter (mm): 22.0●Maximum tensile load (kN): 33.3●Embedding depth (mm): 100 (60 + finishing material thickness 40)●Outer diameter D (mm): 21.5●Total length L (mm): 100●Thread length (mm): 30●Drilling depth (mm): 108●Boxed Material/Finish: ●Steel●Trivalent chromate treatment●Surface treatment: Trivalent chromate treatment Caution: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●Be sure to remove the chips from the pilot hole. ●Make sure that the main body has a cone and set it in the pilot hole. ●For safe and reliable installation, be sure to use the hand (machine) holder specified by our company. ●Use a hand (machine) holder that is suitable for the product size.
