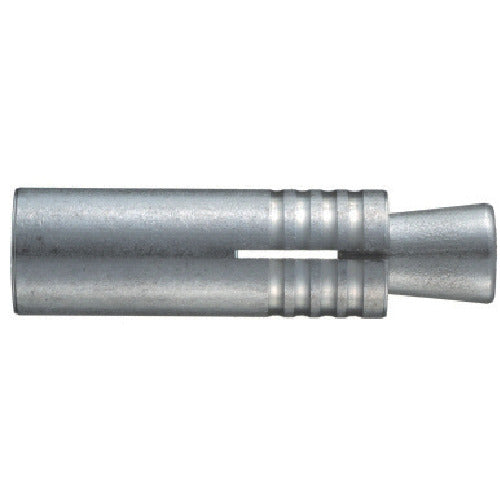

Sanko Techno Grip Anchor SGA Type SUS316 Metric Screw 316SGA6M 1 Piece

Catalog number: 316SGA6M Features: ● Applications can be expanded by selecting bolts according to specifications. ● The anchor does not get in the way even after the equipment (facilities) is removed. Applications: ● For concrete ● Installation of pipe hanging fittings, light ceiling construction, installation of air conditioning ducts, cable rack hanging, installation of scaffolding, etc. Specifications: ● Screw size: M6 ● Outer diameter (mm): 10.5 ● Total length (mm): 30 ● Screw length (mm): 10 ● Drill diameter (mm): 11 ● Maximum tensile load (kN): 9.3 ● Embedded depth (mm): 30 ● Outer diameter D (mm): 10.5 ● Screw length (mm): 10 ● Drilling depth (mm): 33 ● Boxed Material/Finish: ● Stainless steel (SUS316 series) Caution: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]]. ● Be sure to remove the chips from the pilot hole. ● Make sure that the main body has a cone and set it in the pilot hole. ●For safe and reliable installation, be sure to use the hand holder specified by our company. ●Use a hand holder that is suitable for the product size.
