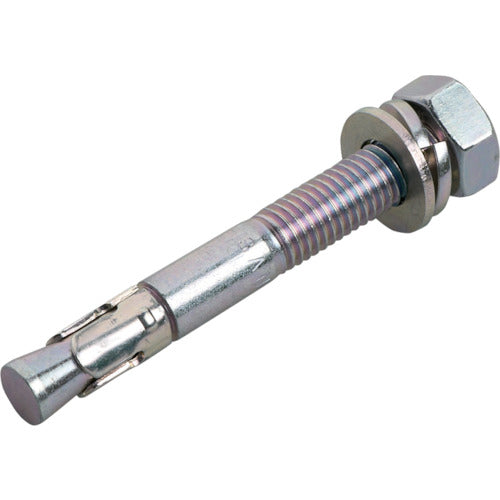

Sanko Techno Torcon Anchor TCW Type Steel Wedge Type TCW-655 50 Pieces

Catalog number: TCW-655 Features: * Demonstrates stable strength with the "following expansion function" that opens in response to tensile force. * The body and thread diameter are the same, so installation is possible from above the object being attached. * Main dimensions based on JCAA certified products and SHASE-S standard products. * Comes with line marks as a guide for installation management. * Even after installation, the overall length can be confirmed by checking the engraved head. Applications: * For installing pipe ducts, etc. ●For concrete●For medical equipment installation, communication frame installation, slag installation, plant facility construction, equipment installation, etc. Specifications: ●Screw designation: M6 ●Screw length (mm): 23 ●Total length (mm): 55 ●Maximum thickness of object to be attached (mm): 5 ●Drill diameter (mm): 6 ●Standard installation torque (N・m): 5 ●Maximum tensile load (kN): 5.2 ●Maximum shear load (kN): 7.4 ●Effective embedment depth (mm): 30 or more ●Embedded depth (mm): 38 or more ●Nut two-face width (mm): 10 ●Drilling depth (mm): 55 - thickness of object to be attached ●Maximum tensile load (kN): 5.2 ●Boxed Material/Finish: ●Steel ●Surface treatment: Trivalent chromate treatment Set contents/Accessories: ●Nut/Washer/Spring washer specifications Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]].
