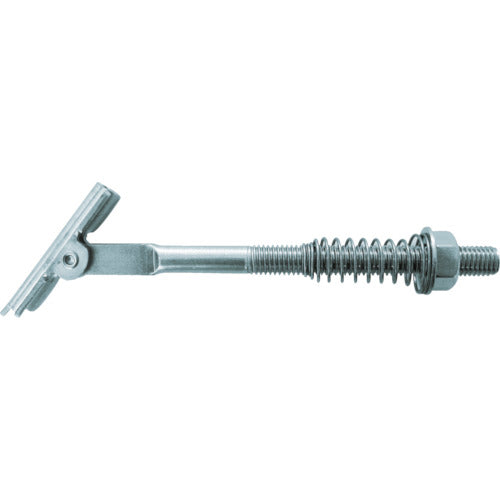

Sanko IT Hanger ITL-MS Type Stainless Steel ITL-8135MS 50 Pieces

Catalogue number: ITL-8135MS Features: * Stable holding power is obtained by penetrating construction. * Tightening penetrating construction does not damage the ALC panel. * Tightening penetrating construction does not damage the ALC panel. * Spring effect makes it easy to install. * Can be installed on walls and floors. Applications: * For ALC panels. * For installing distribution boards, rain gutters, etc. Specifications: ●Screw designation: M8 ●Screw length (mm): 96 ●Counterbore diameter (mm): 16.0 ●Plate length (mm): 45 ●Fastening plate thickness (mm): 1-10 ●Required hollow section (mm): 47 ●Maximum thickness of object to be attached (mm): 10 ●Maximum tensile load (kN): 3.3 ●Length (mm): 135 ●Threaded type ●Boxed Material/Finish: ●Main body: Stainless steel (SUS304 series, SUSXM7) ●Plate section: Stainless steel (SUS304 series) Set contents/Accessories: ●Nut with seat Note: ●The maximum tensile load is the value when the ALC panel compressive strength is Fc4N/m［［M2］］.
