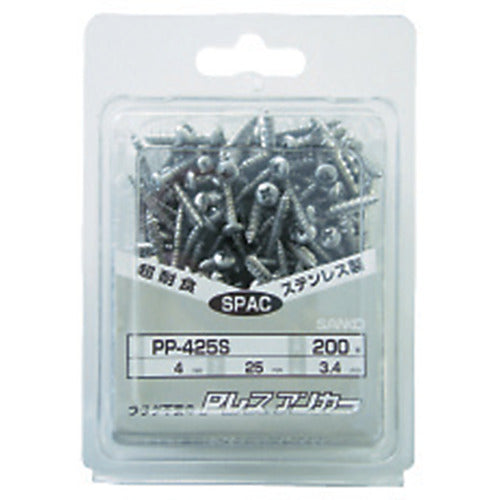

Sanko P-less anchor, stainless steel (200 pieces) PP-4X25SP200 1 PK

Catalog number: PP-4X25SP200 Features: ●No need for plugs, so pilot holes can be small. ●Firmly fixed to the mating material with both high and low threads. ●No need for plugs, so drill holes can be small. ●Firmly fixed to the mating material with both high and low threads. Applications: ●For concrete, blocks, and wood. ●For concrete, blocks, and wood. ●For wiring and piping saddle fastening, signboard installation, interior base material installation, lighting fixture installation, etc. Specifications: ●Nominal diameter d (mm): 4 ●Pilot hole diameter (mm): 3.4 ●Embedding depth (mm): 22 ●Maximum tensile load (kN): 1.7 ●Drilling depth (mm): 35-t ●Length (mm): 25 ●Compatible screwdriver: Phillips No. 2 Material/Finish: ●Stainless steel (SUS410) Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/mm [squared]. ●The drilling depth is the total length + 10 mm - t (thickness of the object to be attached).
