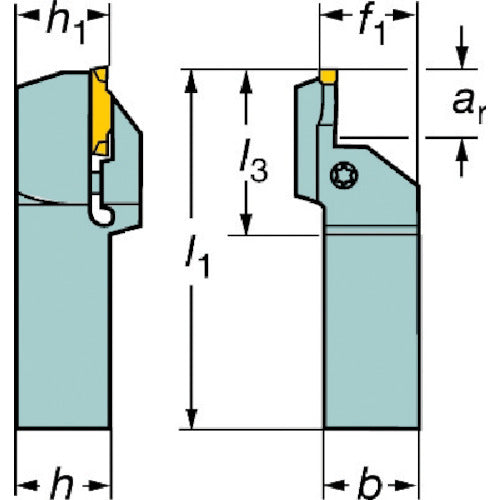

Catalog number: LF123U06-1616BM Features: ●3-corner usable, economical shank tool for CoroCut 3. ●Due to the unique clamping system, even if the tip is damaged, the clamping part is not affected. Applications: ●For shallow parting and grooving. Specifications: ●Compatible tip: N123 ●Gauge tip: N123U3-0150- CM ●Tip tightening torque: 3 ●Maximum cutting depth: 6.4 ●f1: 16 ●l1: 125 ●l3: 23 ●b: 16 ●h: 16
