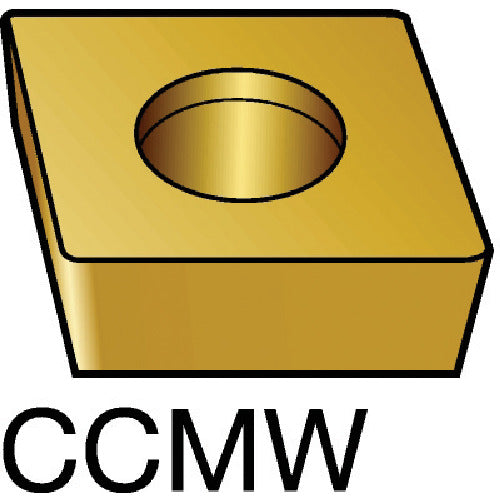

Sandvik Coromant 107 Turning Diamond Positive Insert (630) CD10 CCMW 09 T3 04FP 5 pieces

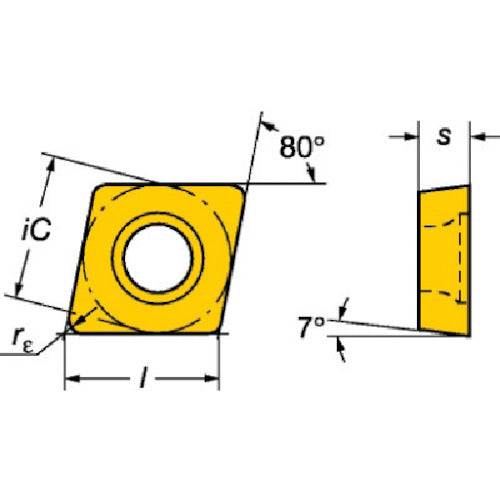

Catalogue number: CCMW 09 T3 04FP Features: ●Long tool life and good surface finish. Applications: ●For general turning and non-ferrous metal processing. ●For finishing and semi-finishing. Specifications: ●Suitable workpiece: N ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 4.3 ●Inscribed circle IC (mm): 9.525 ●Thickness S (mm): 3.96875 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 4.4 ●Main relief angle AN (°): 7 ●Coating: Uncoated ●Processing type: Finishing ●Breaker: FP ●Thickness (mm): 3.96875 ●Blade length (mm): 4.3 ●Insert relief angle (°): 7 ●Processing form: Finishing cutting ●Non-coated polycrystalline diamond material
