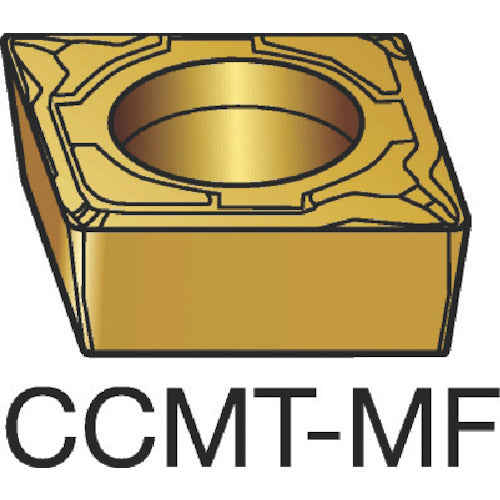

Sandvik Coromant 107 Turning Positive Insert (120) 1115 CCMT 09 T3 08-MF 10 Pieces

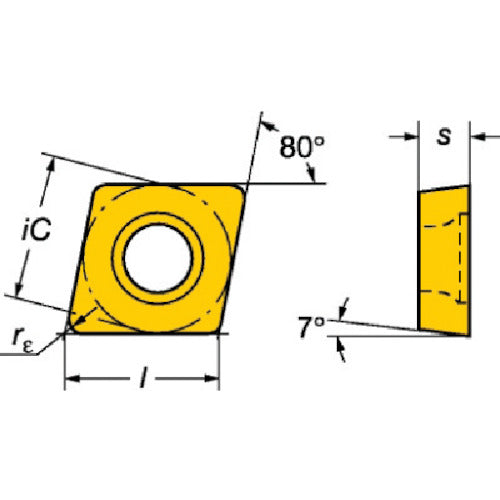

Catalog number: CCMT 09 T3 08-MF Features: ●Sharp cutting edge and close contact with ultra-fine grain base material, high high temperature hardness and excellent resistance to plastic deformation are combined with excellent cutting edge reliability. ●Uniform flank wear and high machining performance are achieved. Applications: ●For general turning and stainless steel machining. ●For finishing stainless steel. Specifications: ● Suitable workpiece material: MS ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 8.8719 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: TiAlN + TiAlN ● Machining type: Finishing ● Breaker: MF ● Thickness (mm): 3.96875 ● Cutting edge length (mm): 8.8719 ● Tip relief angle (°): 7 ● Machining type: Finishing cutting ● PVD thin film coating material type
