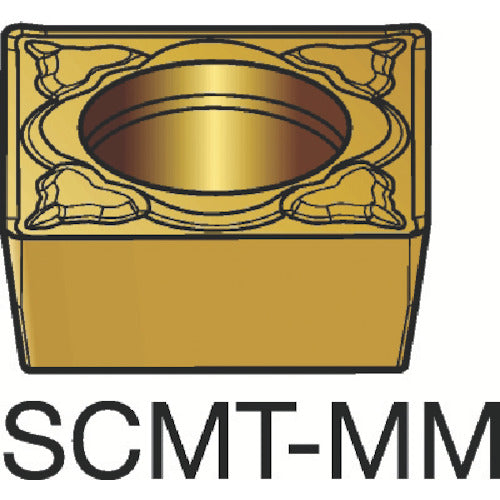

Sandvik Coromant 107 Turning Positive Insert (120) 1115 SCMT 12 04 08-MM 10 Pieces

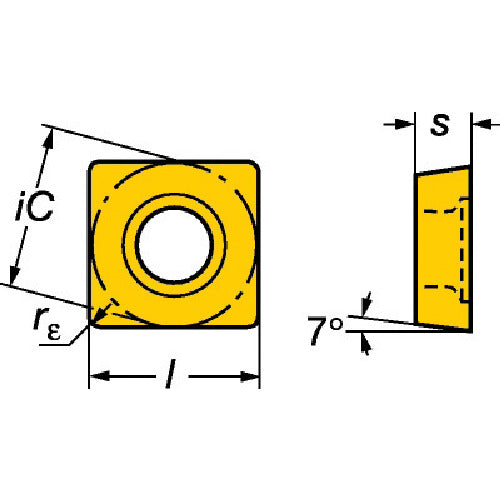

Catalog number: SCMT 12 04 08-MM Features: ● Sharp cutting edge and close contact with ultra-fine grain base material, high high temperature hardness and excellent plastic deformation resistance are combined with excellent cutting edge reliability. ● Uniform flank wear and high machining performance are achieved. Applications: ● For general turning stainless steel machining. ● For general turning heat-resistant alloy machining. Specifications: ● Suitable workpiece material: MS ● Insert shape: Square ● Effective cutting edge length LE (mm): 11.9 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 5.5 ● Main relief angle AN (°): 7 ● Coating: TiAlN + TiAlN ● Machining type: Medium ● Breaker: MM ● Thickness (mm): 4.7625 ● Blade length (mm): 11.9 ● Insert relief angle (°): 7 ● Machining form: Medium cutting ● PVD thin film coating material type
