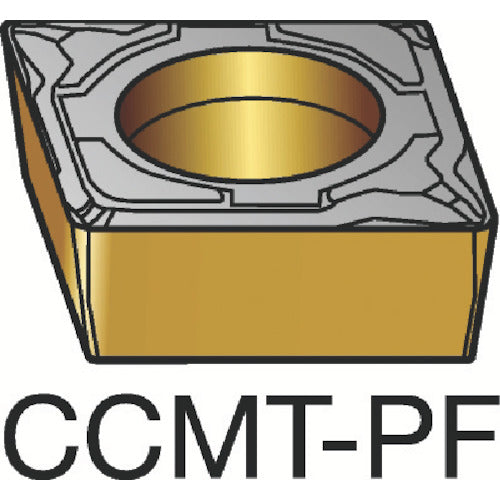

Sandvik Coromant 107 Turning Positive Insert (120) 1515 CCMT 09 T3 02-PF 10 Pieces

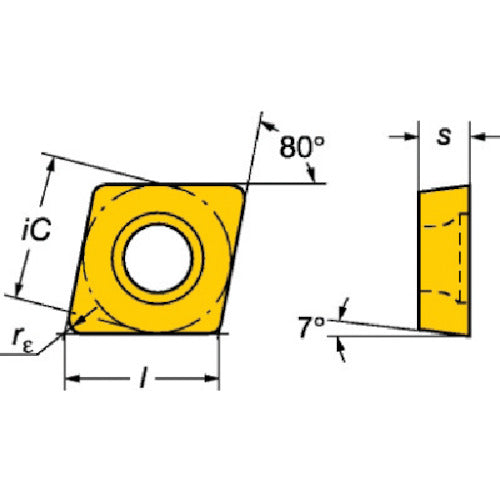

Catalog number: CCMT 09 T3 02-PF Features: ●Ideal for cases where excellent surface roughness and sharp cutting edges are required. ●Excellent impact resistance for light intermittent cutting. Applications: ●For general turning steel processing. ●For finishing low carbon steel to low alloy steel, and for soft alloy steel at low to medium cutting speeds. Specifications: ● Suitable workpiece material: PM ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 9.4719 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.2 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: TiCN+Al2O3+TiN ● Machining type: Finishing ● Breaker: PF ● Thickness (mm): 3.96875 ● Blade length (mm): 9.4719 ● Tip relief angle (°): 7 ● Machining form: Finishing cutting ● CVD coated carbide material
