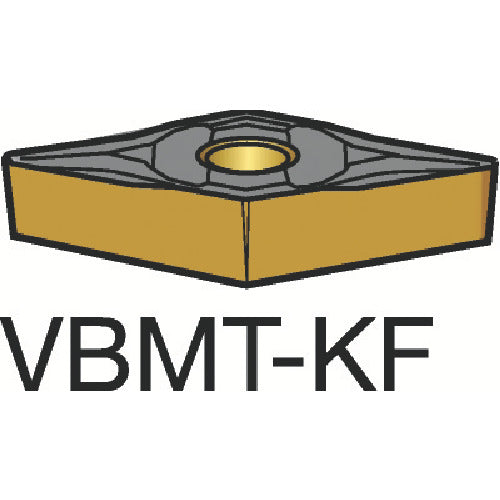

Sandvik Coromant 107 Turning Positive Insert (120) H13A VBMT 11 03 02-KF 10 pieces

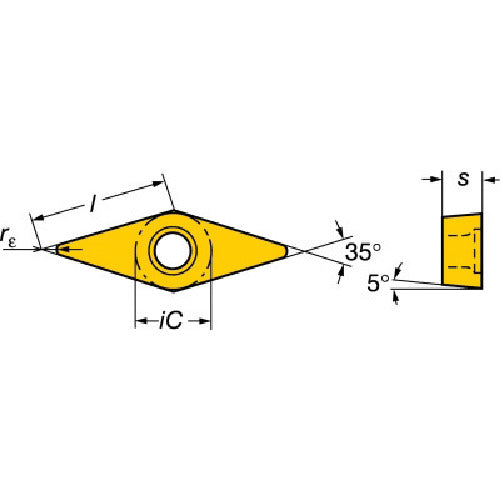

Catalog number: VBMT 11 03 02-KF Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For rough to semi-rough machining of aluminum alloys. Specifications: ●Suitable workpiece: KNS ●Insert shape: 35° diamond ●Effective cutting edge length LE (mm): 10.8709 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 3.175 ●Corner radius RE (mm): 0.2 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 5 ●Coating: Uncoated ●Machining type: Finishing ●Corner radius (mm): 0.2 ●Breaker: KF ●Thickness (mm): 3.175 ●Blade length (mm): 10.8709 ●Insert relief angle (°): 5 ●Machining form: Finishing cutting ●Non-coated carbide material
