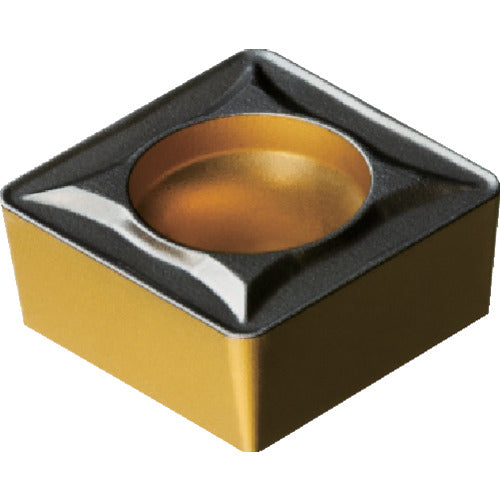

Sandvik Coromant 107 turning positive insert (122) 4415 SCMT 12 04 08-UR 10 pieces

Catalog number: SCMT 12 04 08-UR Features: ●This material is ideal for machining that requires heat resistance. ●The new base material combines resistance to plastic deformation with good toughness, resulting in improved reliability. Stability is improved by increasing the cobalt content toward the surface. Applications: ●For turning steel machining. Specifications: ●Suitable workpiece material: PK ●Insert shape: Square ●Effective cutting edge length LE (mm): 11.9 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 5.5 ●Main relief angle AN (°): 7 ●Coating: TiCN+Al2O3+TiN ●Machining type: Roughing ●Breaker: UR ●Thickness (mm): 4.7625 ●Blade length (mm): 11.9 ●Insert relief angle (°): 7 ●Machining form: Rough cutting ●CVD coating material
