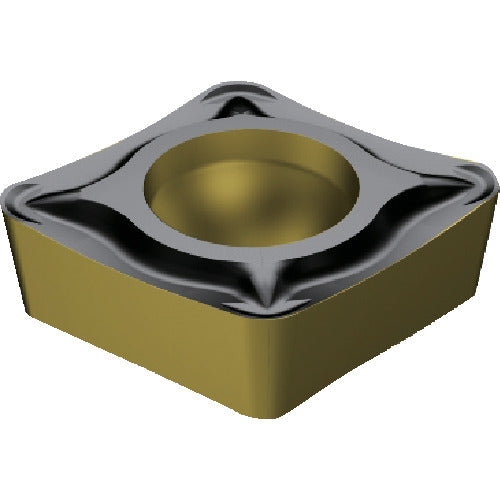

Sandvik Coromant 107 turning positive insert (122) 4425 CCMT060208-UM 10 pieces

Catalog number: CCMT060208-UM Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. ● For rough to finishing processes. ● For continuous and intermittent cutting. Specifications: ● Suitable workpiece material: PK ● Tip shape: Diamond 80° ● Effective cutting edge length LE (mm): 5.648 ● Inscribed circle IC (mm): 6.35 ● Thickness S (mm): 2.38125 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 2.8 ● Main relief angle AN (°): 7 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: UM ● Thickness (mm): 2.38125 ● Cutting edge length (mm): 5.648 ● Tip relief angle (°): 7 ● Machining form: Medium cutting ● CVD coated carbide material
