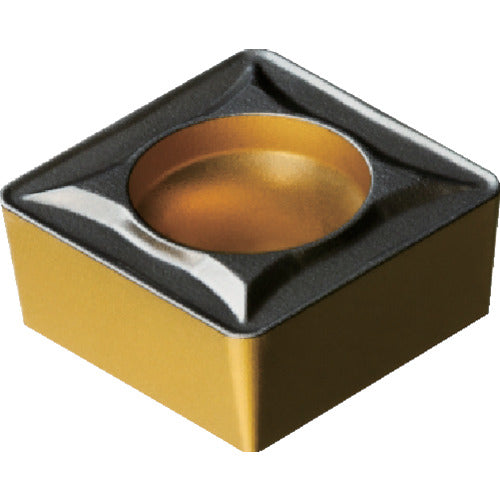

Sandvik Coromant 107 Turning Positive Insert (122) 4425 SCMT120404-UR 10 pieces

Catalog number: SCMT120404-UR Features: ● Suitable for most steel turning applications. ● New base material combines resistance to plastic deformation with good toughness, resulting in improved reliability. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. Specifications: ● Suitable workpiece: PK ● Insert shape: Square ● Effective cutting edge length LE (mm): 12.3 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 5.5 ● Main relief angle AN (°): 7 ● Coating: TiCN + Al2O3 + TiN ● Processing type: Roughing ● Breaker: UR ● Thickness (mm): 4.7625 ● Blade length (mm): 12.3 ● Insert relief angle (°): 7 ● Processing form: Rough cutting ● CVD coating material type
