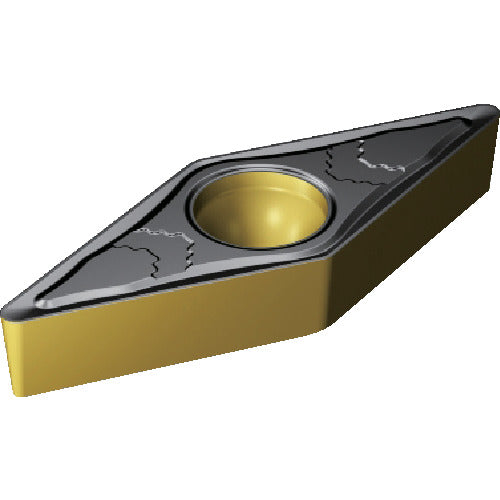

Sandvik Coromant 107 turning positive insert (122) 4425 VBMT 16 04 08-PMC 10 pieces

Catalog number: VBMT 16 04 08-PMC Features: ● Suitable for most steel turning applications. ● Improved reliability thanks to a new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For general turning steel applications. ● For rough to finishing applications. ● For continuous and intermittent cutting. Specifications: ● Suitable workpiece material: PK ● Insert shape: 35° rhombus ● Effective cutting edge length LE (mm): 15.8063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 5 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Corner radius (mm): 0.7938 ● Breaker: PMC ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 15.8063 ● Insert relief angle (°): 5 ● Machining type: Medium cutting ● CVD coating material type
