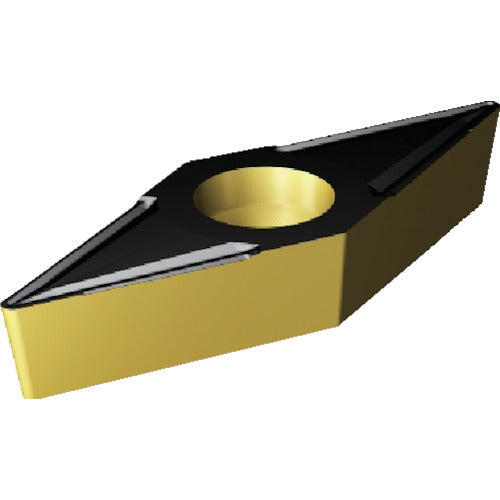

Sandvik CoroTurn 107 Turning Positive Insert (122) 4425 VBMT160412-UR 10 pieces

Catalog number: VBMT160412-UR Features: ● Suitable for most steel turning processes. ● Improved reliability due to new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For general turning steel processing. ● For rough to finishing processing. ● For continuous and intermittent cutting. Specifications: ● Suitable workpiece material: PK ● Insert shape: 35° rhombus ● Effective cutting edge length LE (mm): 15.4063 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 5 ● Coating: TiCN+Al2O3+TiN ● Machining type: Roughing ● Corner radius (mm): 1.1906 ● Breaker: UR ● Thickness (mm): 4.7625 ● Cutting edge length (mm): 15.4063 ● Insert relief angle (°): 5 ● Machining type: Rough cutting ● CVD coating material type
