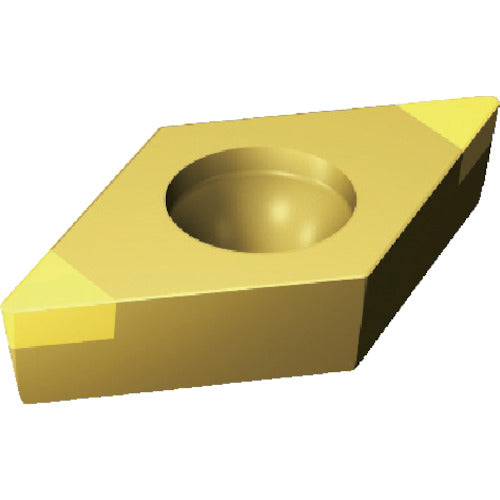

Sandvik CoroTurn 107 Turning CBN Positive Insert (620) 7105 DCGW11T308S01020F 5 pieces

Catalog number: DCGW11T308S01020F Features: ● This is the first recommended CBN material for continuous cutting of case hardened steel and high-frequency hardened steel under stable conditions at low feed rates. Applications: ● For general turning and machining of high-hardness steel. ● For high-speed machining. Specifications: ● Suitable workpiece: H ● Insert shape: Diamond 55° ● Effective cutting edge length LE (mm): 2.5 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.96875 ● Corner radius RE (mm): 0.8 ● Hole diameter D1 (mm): 4.4 ● Main relief angle AN (°): 7 ● Coating: TiN ● Machining type: Finishing ● Thickness (mm): 3.96875 ● Blade length (mm): 2.5 ● Insert relief angle (°): 7 ● Machining form: Finishing cutting ● PVD coated CBN insert
