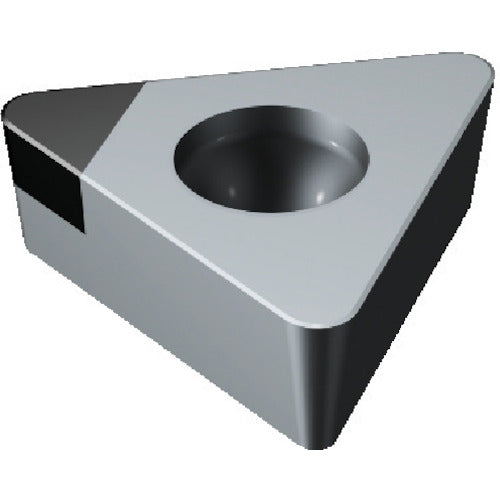

Sandvik Coromant 107 Turning CBN Positive Insert (620) CB20 TCMW 09 02 04S01020E 5 pieces

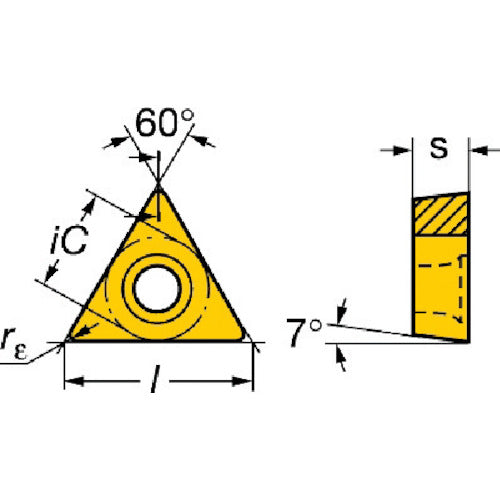

Catalog number: TCMW 09 02 04S01020E Features: ● First recommended material for continuous cutting and light intermittent cutting of high-hardness steel. Applications: ● For general turning and high-hardness steel processing. ● For high-speed processing. Specifications: ● Suitable workpiece: H ● Insert shape: Triangle ● Effective cutting edge length LE (mm): 3 ● Inscribed circle IC (mm): 5.55625 ● Thickness S (mm): 2.38125 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 2.5 ● Main relief angle AN (°): 7 ● Coating: Uncoated ● Processing type: Finishing ● Thickness (mm): 2.38125 ● Blade length (mm): 3 ● Insert relief angle (°): 7 ● Processing form: Finishing cutting ● Non-coated CBN insert
