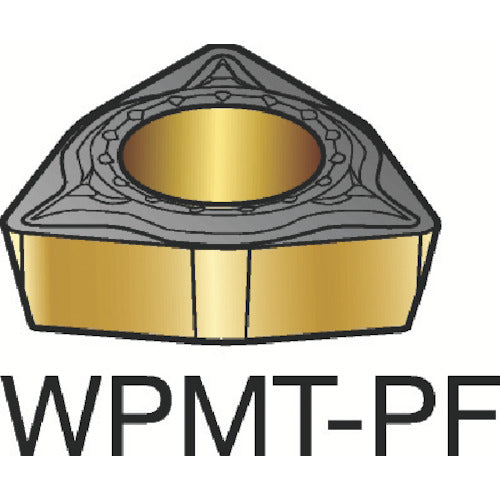

Sandvik Coromant 111 Turning Positive Insert (120) 5015 WPMT 04 02 02-PF 10 Pieces

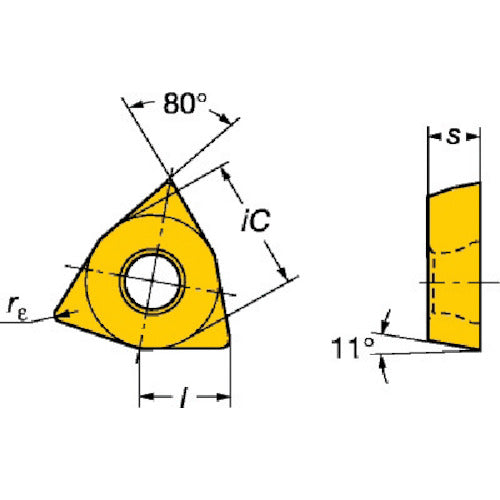

Catalogue number: WPMT 04 02 02-PF Features: ●Excellent resistance to built-up edge and plastic deformation. Applications: ●For general turning steel. ●For finishing of low alloy and alloy steel. Specifications: ●Suitable workpiece: PK ●Insert shape: Hexagonal ●Effective cutting edge length LE (mm): 4.1437 ●Inscribed circle IC (mm): 6.35 ●Thickness S (mm): 2.38125 ●Corner radius RE (mm): 0.2 ●Hole diameter D1 (mm): 2.8 ●Main relief angle AN (°): 11 ●Coating: Uncoated ●Machining type: Finishing ●Corner radius (mm): 0.2 ●Breaker: PF ●Thickness (mm): 2.38125 ●Blade length (mm): 4.1437 ●Insert relief angle (°): 11 ●Machining form: Finishing cutting ●Non-coated cermet
