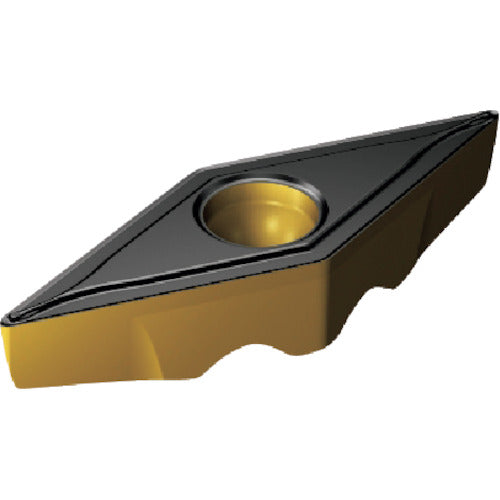

Sandvik Coromant TR turning insert (310) 4425 TR-VB1304-F 10 pieces

Catalog number: TR-VB1304-F Features: ● Suitable for most steel turning. Applications: ● For steel. ● For turning Specifications: ● Suitable workpiece: PK ● Insert shape: Diamond 35° ● Effective cutting edge length LE (mm): 12.6 ● Inscribed circle IC (mm): 8 ● Thickness S (mm): 4.525 ● Corner radius RE (mm): 0.3969 ● Hole diameter D1 (mm): 3.4 ● Main relief angle AN (°): 5 ● Coating: TiCN+Al2O3+TiN ● Processing type: Finishing ● Breaker: F ● Thickness (mm): 4.525 ● Blade length (mm): 12.6 ● Insert relief angle (°): 5 ● Processing form: Finishing cutting
