サンドビック（株）コロマントカンパニー

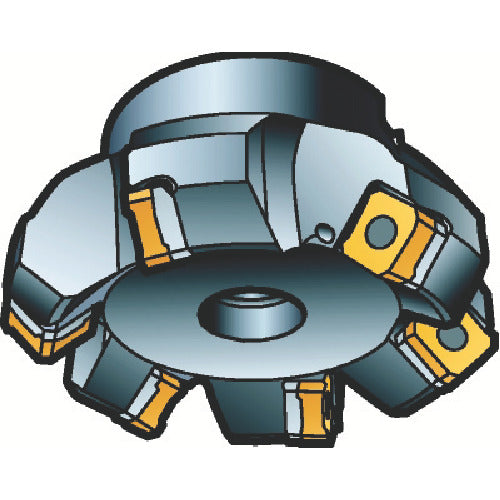

Sandvik CoroMill 345 cutter (455) A345-100J31-13M 1 unit
Sandvik CoroMill 345 cutter (455) A345-100J31-13M 1 unit
Regular price
¥136,686
Regular price
Sale price
¥136,686
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

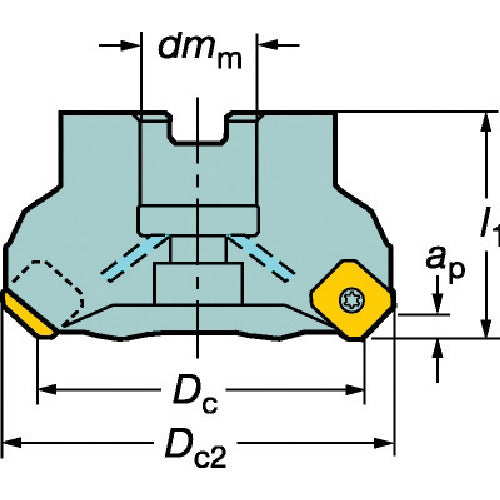

Catalogue number: A345-100J31-13M Features: ●Low cutting resistance. ●Suitable for mirror finishing and high-speed machining. Applications: ●Front milling. ●For all work materials. ●Arbor mounting (FMA). Specifications: ●Number of teeth CICT (pieces): 7 ●Cutting diameter DC (mm): 100 ●Insertion angle KAPR (°): 45 ●Maximum cutting diameter DCX (mm): 114.08 ●Number of teeth: 7 ●Number of teeth (pieces): 7 ●Gauge tip: 345R-1305 ●Insertion angle: 45 ●Dc: 100 ●dmm: 31.75 ●l1: 63 ●Maximum insertion: 6 ●Weight (KG): 1.8 ●Dc2: 114.08 ●Pitch: Cross pitch ●High precision ●8 corner specifications
