サンドビック（株）コロマントカンパニー

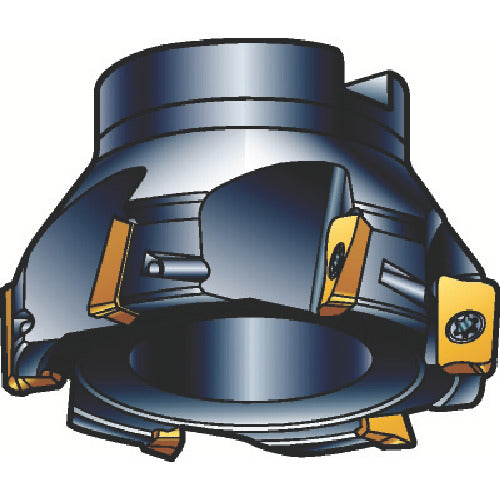

Sandvik CoroMill 390 cutter (450) R390-050Q22-17L 1 piece
Sandvik CoroMill 390 cutter (450) R390-050Q22-17L 1 piece
Regular price
¥74,989
Regular price
Sale price
¥74,989
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

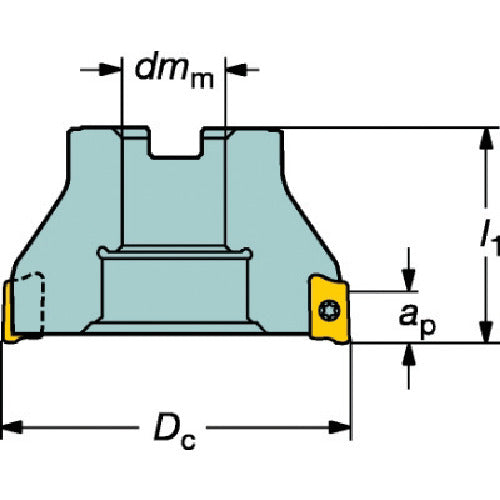

Catalogue number: R390-050Q22-17L Features: ●Low cutting resistance. ●True 90°. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Compatible with all types of machining. ●Arbor mounting (mm). Specifications: ●Number of teeth CICT (pieces): 3 ●Cutting diameter DC (mm): 50 ●Insertion angle KAPR (°): 90 ●Shank diameter (mm): 22.0 ●Number of teeth: 3 ●Number of teeth (pieces): 3 ●Gauge tip: R390-17.. ●Insertion angle: 90 ●Dc: 50 ●l1: 40 ●Maximum insertion: 15.7 ●Weight (KG): 0.48 ●Maximum rotation speed: 19000 ●Pitch: Course pitch ●High precision
