サンドビック（株）コロマントカンパニー

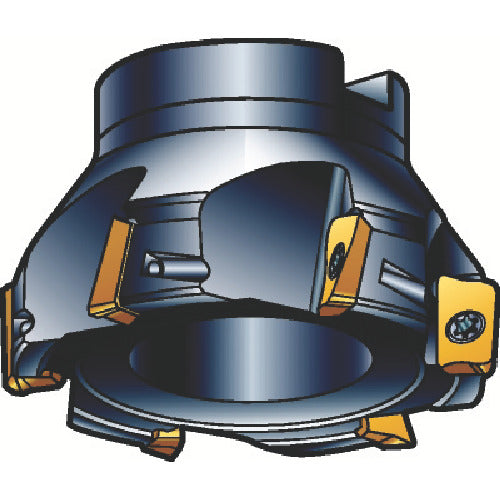

Sandvik CoroMill 390 cutter (450) R390-063Q22-17M 1 piece
Sandvik CoroMill 390 cutter (450) R390-063Q22-17M 1 piece
Regular price
¥93,674
Regular price
Sale price
¥93,674
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

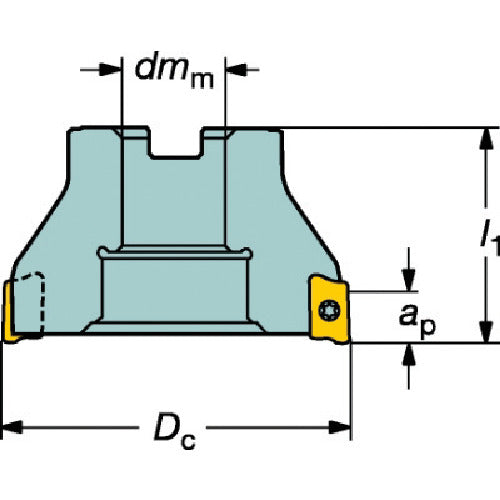

Catalogue number: R390-063Q22-17M Features: ●Low cutting resistance. ●True 90°. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Compatible with all types of machining. ●Arbor mounting (mm). Specifications: ●Number of teeth CICT (pieces): 5 ●Cutting diameter DC (mm): 63 ●Insertion angle KAPR (°): 90 ●Shank diameter (mm): 22 ●Number of teeth: 5 ●Number of teeth (pieces): 5 ●Gauge tip: R390-17.. ●Insertion angle: 90 ●Dc: 63 ●l1: 40 ●Maximum insertion: 15.7 ●Weight (KG): 0.583 ●Maximum rotation speed: 16500 ●Pitch: Cross pitch ●General use, medium feed, first recommendation
