サンドビック（株）コロマントカンパニー
Sandvik CoroMill 390 cutter (450) RA390-080J25.4-17L 1 piece
Sandvik CoroMill 390 cutter (450) RA390-080J25.4-17L 1 piece
Regular price
¥104,459
Regular price
Sale price
¥104,459
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

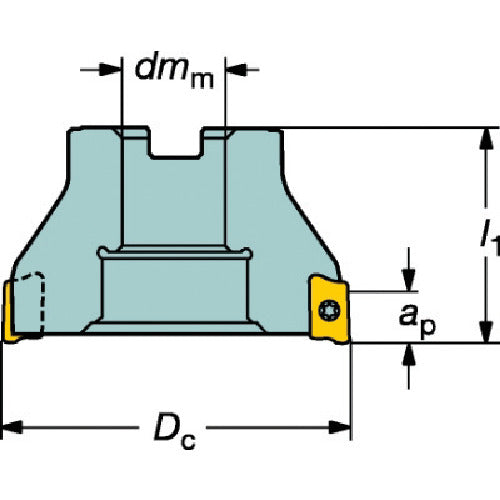

Catalogue number: RA390-080J25.4-17L Features: ●Low cutting resistance. ●True 90°. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Compatible with all types of machining. ●Arbor mounting (FMA). Specifications: ●Number of teeth CICT (pieces): 5 ●Cutting diameter DC (mm): 80 ●Insertion angle KAPR (°): 90 ●Shank diameter (mm): 25.4 ●Number of teeth: 5 ●Number of teeth (pieces): 5 ●Gauge tip: R390-17.. ●Insertion angle: 90 ●Dc: 80 ●dmm: 25.4 ●l1: 50 ●Maximum insertion: 15.7 ●Weight (KG): 1 ●Maximum rotation speed: 14400 ●Pitch: Course pitch ●High precision
