サンドビック（株）コロマントカンパニー

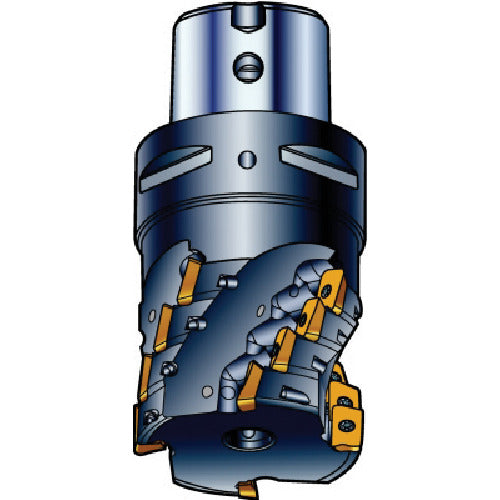

Sandvik CoroMill 390 Long Edge Cutter (440) R390-050Q22-57L 1 piece
Sandvik CoroMill 390 Long Edge Cutter (440) R390-050Q22-57L 1 piece
Regular price
¥145,464
Regular price
Sale price
¥145,464
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: R390-050Q22-57L Features: ●Low cutting resistance. ●Few steps. Applications: ●Shoulder milling. ●Groove milling. ●Copying. ●Helical milling. ●Compatible with all types of machining. ●Arbor mounting (mm). Specifications: ●Number of teeth CICT (pieces): 2 ●Cutting diameter DC (mm): 50 ●Insertion angle KAPR (°): 90 ●Number of teeth: 2 ●Number of teeth (pieces): 2 ●Gauge tip: R390-18.. ●Insertion angle: 90 ●Dc: 50 ●l1: 82 ●Maximum insertion: 57 ●Weight (KG): 1.08 ●Maximum rotation speed: 7900 ●Pitch: Coarse pitch ●High precision
