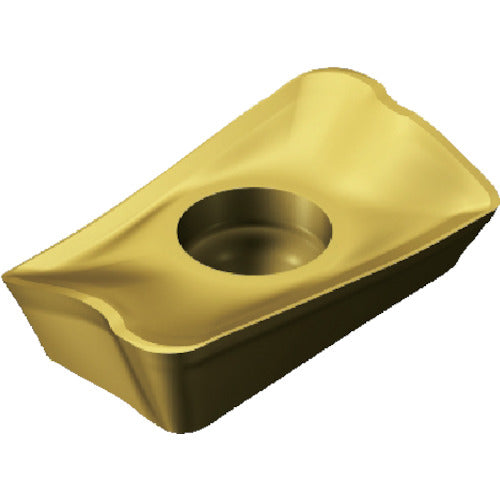

Sandvik CoroMill 390 Milling Insert (350) Grade 1020 1020 R39011T308MKM 10 Pieces

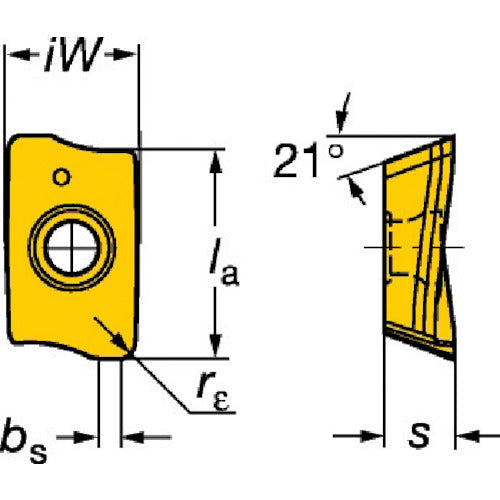

Catalog number: R39011T308MKM Features: ●High-efficiency shoulder milling cutter insert. ●Reliable cutter performance allows for trouble-free milling. ●The cutting edge has a precise twist design, providing dimensional accuracy that is close to that of precision-ground solid tools. Applications: ●For face milling, shoulder milling, and groove machining. Specifications: ●Compatible holder: R390 ●Compatible workpiece: Cast iron ●Insert shape: Rectangular ●Blade length (mm): 10 ●Thickness (mm): 3.59 ●Direction: Right ●Maximum cutting depth: 10 ●Maximum radial allowance: 5.5 ●Insert size: 11 ●s: 3.59 ●re: 0.8 ●iW: 6.8 ●bs: 1.2 ●Coated carbide insert Material/Finish: ●Fine-grain carbide alloy
