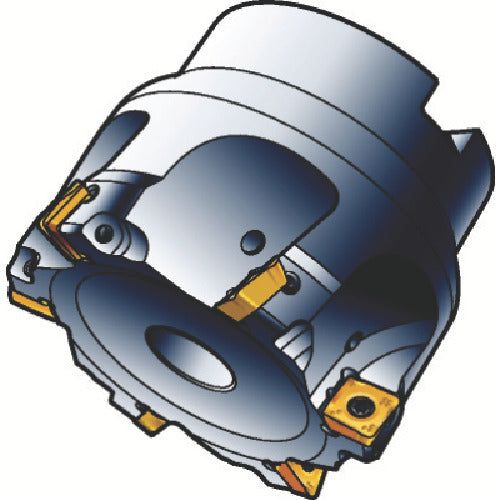

Sandvik CoroMill 490 cutter (455) 490-063Q22-14M 1 unit
Sandvik CoroMill 490 cutter (455) 490-063Q22-14M 1 unit
Regular price
¥102,452
Regular price
Sale price
¥102,452
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

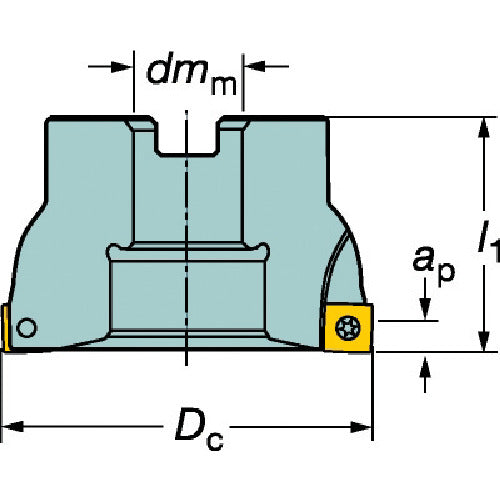

Catalog number: 490-063Q22-14M Features: ● Suitable for face milling and shoulder milling. ● Produces good machined surfaces. Applications: ● Shoulder milling. ● Face milling. ● For all work materials. ● Cross pitch. ● Arbor mounting (mm). Specifications: ● Number of teeth CICT (pieces): 5 ● Cutting diameter DC (mm): 63 ● Cutting angle KAPR (°): 90 ● Number of teeth: 5 ● Number of teeth (pieces): 5 ● Dc: 63 ● dmm: 22 ● l1: 40 ● Maximum cutting depth: 10 ● Maximum rotation speed: 11700 ● Chip size: 14 ● Coolant supply: Coolant center through ● Weight: 0.4 ● High precision
