サンドビック（株）コロマントカンパニー

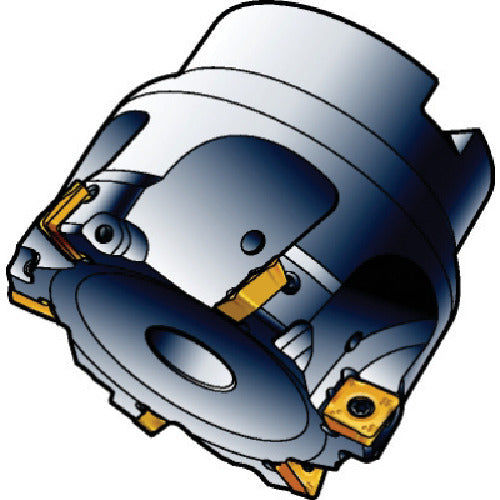

Sandvik CoroMill 490 cutter (455) 490-080Q27-14H 1 unit
Sandvik CoroMill 490 cutter (455) 490-080Q27-14H 1 unit
Regular price
¥136,686
Regular price
Sale price
¥136,686
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

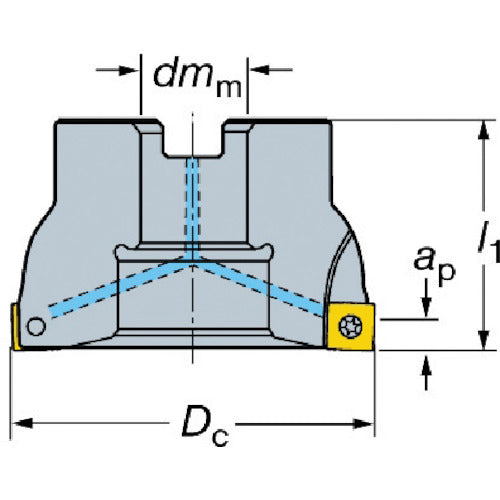

Catalog number: 490-080Q27-14H Features: ● From face milling to shoulder milling ● High precision ● Good machining surface Applications: ● Shoulder milling ● Face milling ● Compatible with all work materials ● Extra close pitch ● Arbor mounting (mm) Specifications: ● Number of teeth CICT (pieces): 8 ● Cutting diameter DC (mm): 80 ● Cutting angle KAPR (°): 90 ● Number of teeth: 8 ● Number of teeth (pieces): 8 ● Dc: 80 ● dmm: 27 ● l1: 50 ● Maximum cutting depth: 10 ● Maximum rotation speed: 10100 ● Chip size: 14 ● Coolant supply: Coolant center through ● Weight: 1
