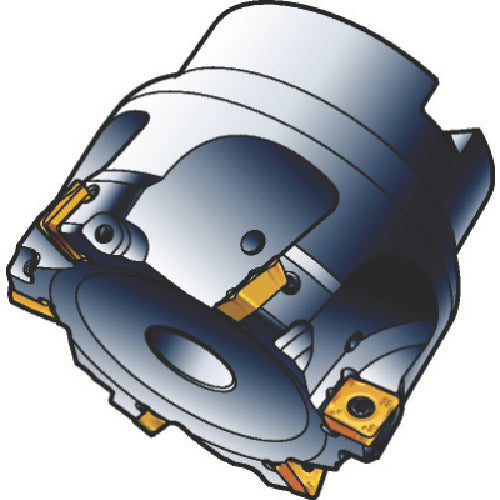

Sandvik CoroMill 490 cutter (455) 490-160Q40-14L 1 unit
Sandvik CoroMill 490 cutter (455) 490-160Q40-14L 1 unit
Regular price
¥183,084
Regular price
Sale price
¥183,084
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

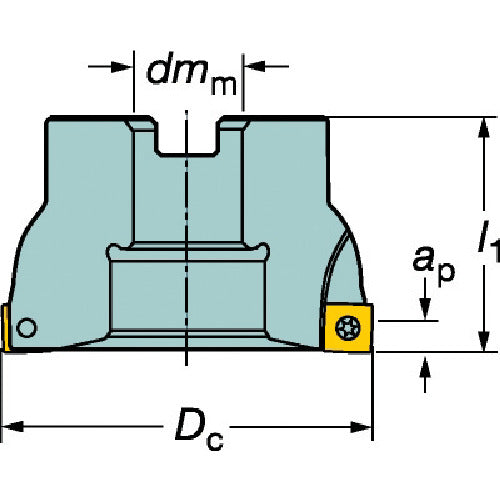

Catalog number: 490-160Q40-14L Features: ● Suitable for face milling and shoulder milling. ● Excellent machining surface. Applications: ● Shoulder milling. ● Face milling. ● For all work materials. ● Course pitch. ● Arbor mounting (mm). Specifications: ● Number of teeth CICT (pieces): 8 ● Cutting diameter DC (mm): 160 ● Cutting angle KAPR (°): 90 ● Number of teeth: 8 ● Number of teeth (pieces): 8 ● Dc: 160 ● dmm: 40 ● l1: 63 ● Maximum cutting depth: 10 ● Maximum rotation speed: 6800 ● Chip size: 14 ● Coolant supply: Coolant center through ● Weight: 4.4 ● High precision
