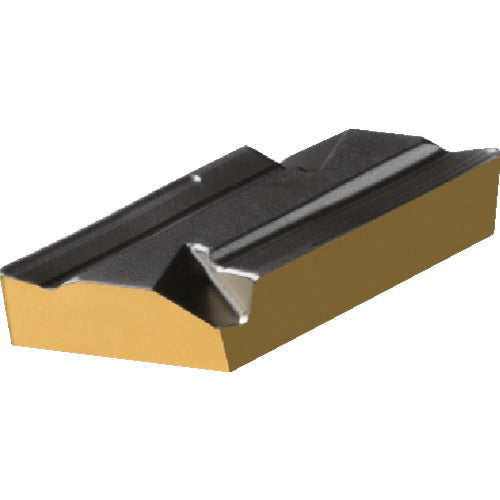

Sandvik T-Max turning negative insert (112) 4425 KNMX 16 04 10 L-71 10 pieces

Catalog number: KNMX 16 04 10 L-71 Features: ● Suitable for most steel turning applications. ● Improved reliability thanks to the new base material that combines resistance to plastic deformation with good toughness. Stability is improved by increasing the cobalt content toward the surface. Applications: ● For turning steel. ● For rough to finishing applications. Specifications: ● Suitable workpiece: PK ● Insert shape: Parallelogram 55° ● Effective cutting edge length LE (mm): 15.5 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1 ● Main relief angle AN (°): 0 ● Coating: TiCN+Al2O3+TiN ● Processing type: Finishing ● Breaker: 71 ● Thickness (mm): 4.7625 ● Blade length (mm): 15.5 ● Insert relief angle (°): 0 ● Processing form: Finishing cutting ● Improved crystal growth orientation improves stability, as well as wear resistance and tool life.
