Sandvik T-Max turning negative insert (140) 2025 KNUX 16 04 10R11 10 pieces

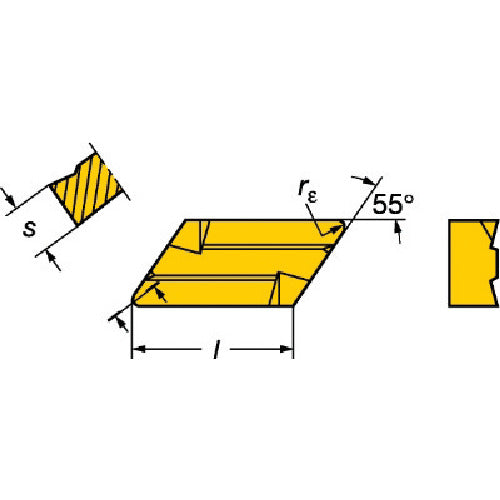

Catalogue number: KNUX 16 04 10R11 Features: ● Excellent cutting edge reliability, for intermittent cutting. Applications: ● For general turning and stainless steel machining. ● For semi-finishing to rough machining. Specifications: ● Suitable workpiece: M ● Insert shape: parallelogram 55° ● Effective cutting edge length LE (mm): 15.5 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Finishing ● Breaker: 11 ● Thickness (mm): 4.7625 ● Blade length (mm): 15.5 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● CVD coated carbide material
