サンドビック（株）コロマントカンパニー
Sandvik T-Max turning negative insert (140) 235 KNUX 16 04 05R11 10 pieces
Sandvik T-Max turning negative insert (140) 235 KNUX 16 04 05R11 10 pieces
Regular price
¥24,240
Regular price
Sale price
¥24,240
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

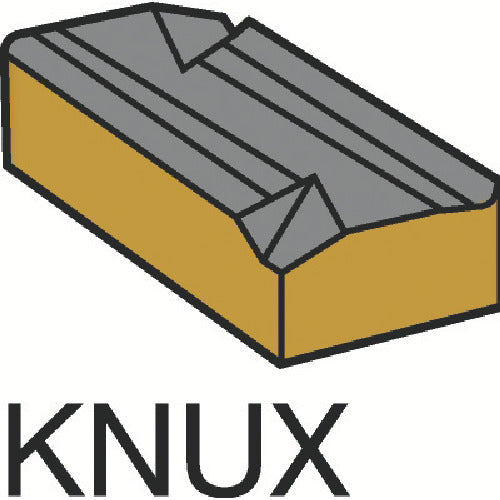

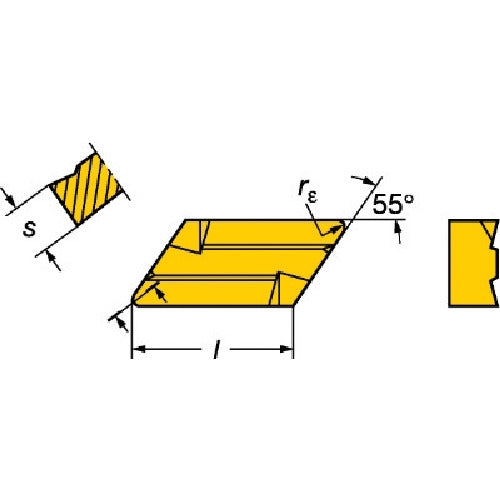

Catalog number: KNUX 16 04 05R11 Features: ●High toughness and high edge strength. ●Ideal for low-speed intermittent cutting. Applications: ●For general turning and machining of stainless steel. ●For rough machining such as black skin. Specifications: ●Suitable workpiece: PM ●Insert shape: Parallelogram 55° ●Effective cutting edge length LE (mm): 16 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.5 ●Main relief angle AN (°): 0 ●Coating: TiCN+TiN ●Machining type: Finishing ●Breaker: 11 ●Thickness (mm): 4.7625 ●Blade length (mm): 16 ●Insert relief angle (°): 0 ●Machining form: Finishing cutting ●CVD coated carbide material
