サンドビック（株）コロマントカンパニー

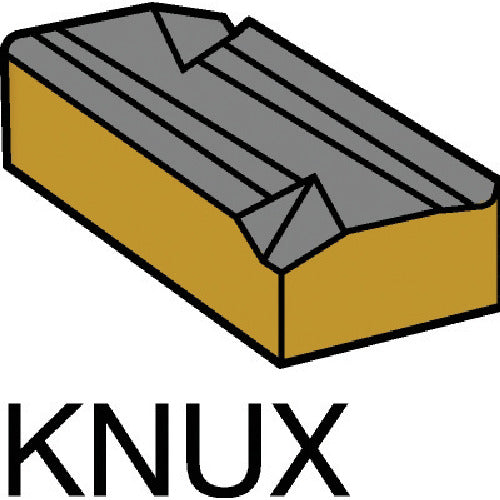

Sandvik T-Max turning negative insert (140) H13A KNUX 16 04 05R12 10 pieces
Sandvik T-Max turning negative insert (140) H13A KNUX 16 04 05R12 10 pieces
Regular price
¥19,524
Regular price
Sale price
¥19,524
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

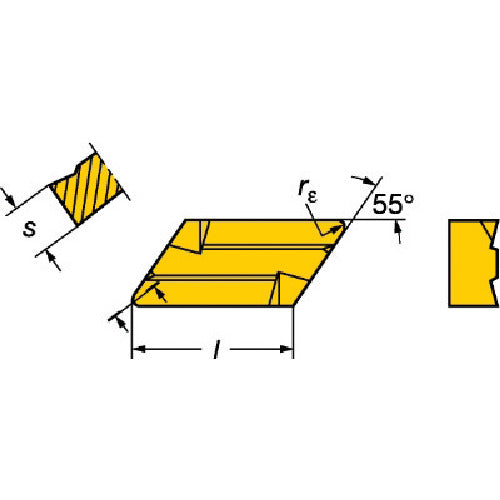

Catalogue number: KNUX 16 04 05R12 Features: ●Excellent abrasion resistance and toughness. Applications: ●For general turning of cast iron and non-ferrous metals. ●For medium to rough machining of aluminum alloys. Specifications: ●Suitable workpiece: PMKNS ●Insert shape: Parallelogram 55° ●Effective cutting edge length LE (mm): 16 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.5 ●Main relief angle AN (°): 0 ●Coating: Uncoated ●Machining type: Finishing ●Breaker: 12 ●Thickness (mm): 4.7625 ●Blade length (mm): 16 ●Insert relief angle (°): 0 ●Machining form: Finishing cutting ●Non-coated carbide material Material/Finish: ●Carbide
