Sandvik T-Max P Ceramic Insert for Turning (610) 6050 WNGA080408T01525 10 pieces
Sandvik T-Max P Ceramic Insert for Turning (610) 6050 WNGA080408T01525 10 pieces
Regular price
¥25,908
Regular price
Sale price
¥25,908
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

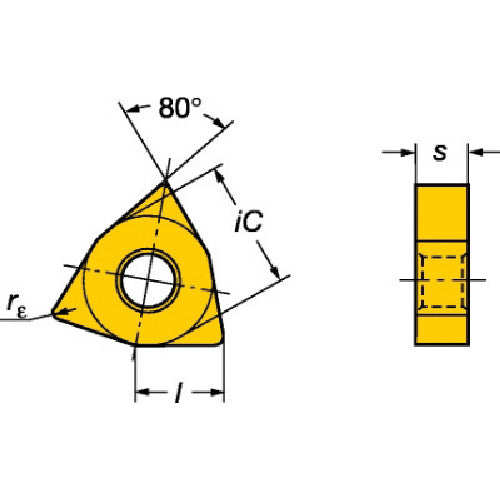

Catalog number: WNGA080408T01525 Applications: ●For general turning and high-hardness steel processing. ●For finishing processing. Specifications: ●Suitable workpiece: H ●Chip shape: 80° hexagon ●Effective cutting edge length LE (mm): 7.8873 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.7938 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiN ●Processing type: Finishing ●Corner radius (mm): 0.7938 ●Breaker: WG ●Thickness (mm): 4.7625 ●Blade length (mm): 7.8873 ●Chip relief angle (°): 0 ●Processing form: Finishing cutting ●PVD coating
