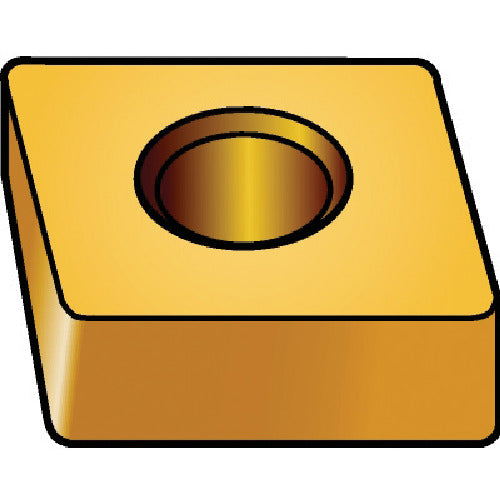

Sandvik T-Max P Ceramic Negative Insert for Turning (610) 6050 CNGA 12 04 12S01525WH 10 pieces

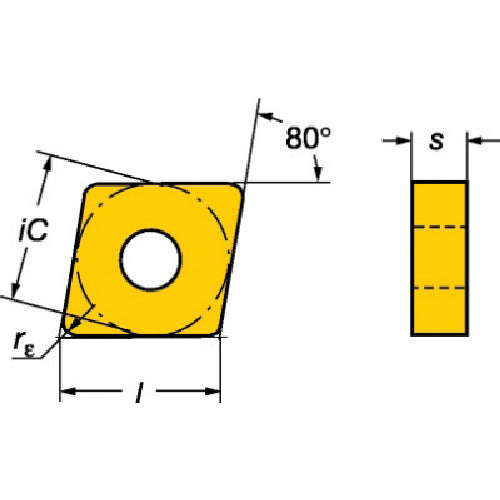

Catalog number: CNGA 12 04 12S01525WH Features: ● Excellent thermal properties and wear resistance. ● Particularly recommended for continuous finishing. Applications: ● For general turning and high-hardness steel machining. Specifications: ● Suitable workpiece: H ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 11.6959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiN ● Machining type: Finishing ● Breaker: WH ● Thickness (mm): 4.7625 ● Blade length (mm): 11.6959 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● PVD coating
