Sandvik T-Max P Ceramic Negative Insert for Turning (610) 650 CNGA 12 04 16T01020 10 Pieces

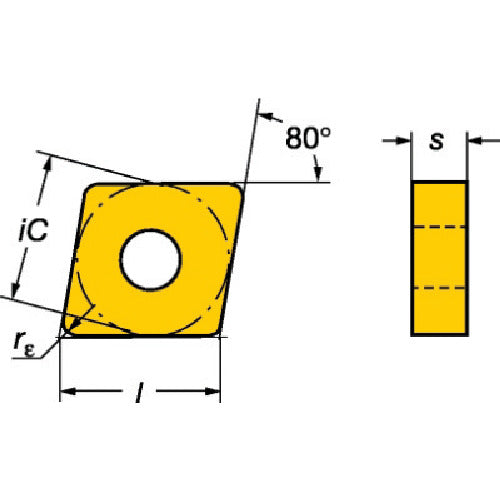

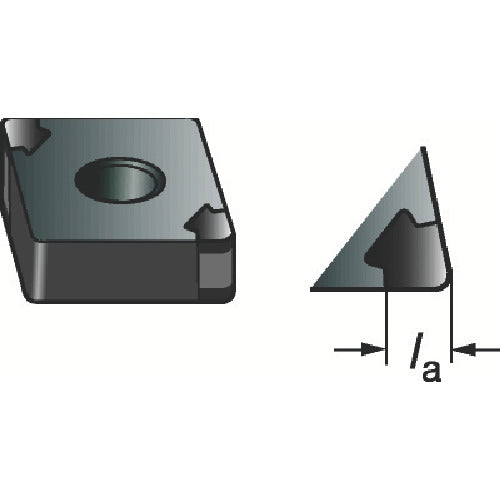

Catalog number: CNGA 12 04 16T01020 Features: ● Excellent thermal properties and wear resistance. ● Particularly recommended for continuous finishing. ● Used for high-speed finishing of gray cast iron and hard cast iron under stable machining conditions. Applications: ● For general turning and hard steel machining. Specifications: ● Suitable workpiece: KSH ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 11.2959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.5875 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: Uncoated ● Machining type: Finishing ● Thickness (mm): 4.7625 ● Blade length (mm): 11.2959 ● Insert relief angle (°): 0 ● Machining form: Finishing cutting ● Alumina-based ceramic material
