Sandvik T-Max P turning negative insert (110) 235 SNMG 15 06 12-QM 10 pieces

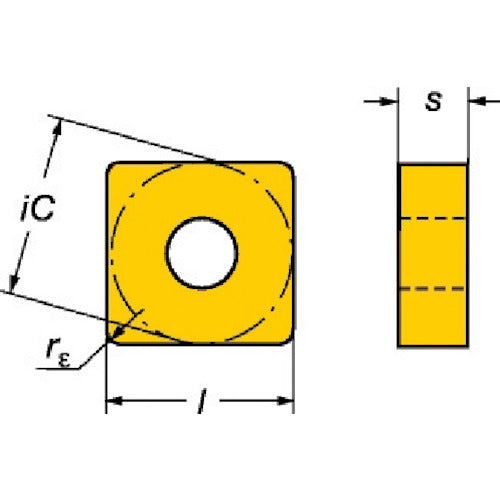

Catalog number: SNMG 15 06 12-QM Features: ●High toughness and high edge strength. ●Ideal for low-speed intermittent cutting. Applications: ●For general turning and machining of stainless steel. ●For rough machining such as black skin. Specifications: ●Suitable workpiece: PM ●Insert shape: Square ●Effective cutting edge length LE (mm): 14.675 ●Inscribed circle IC (mm): 15.875 ●Thickness S (mm): 6.35 ●Corner radius RE (mm): 1.1906 ●Hole diameter D1 (mm): 6.35 ●Main relief angle AN (°): 0 ●Coating: TiCN + TiN ●Machining type: Medium ●Breaker: QM ●Thickness (mm): 6.35 ●Blade length (mm): 14.675 ●Insert relief angle (°): 0 ●Machining form: Medium cutting ●CVD coated carbide material
