Sandvik T-Max P turning negative insert (110) 3005 CNMG 12 04 04-KF 10 pieces

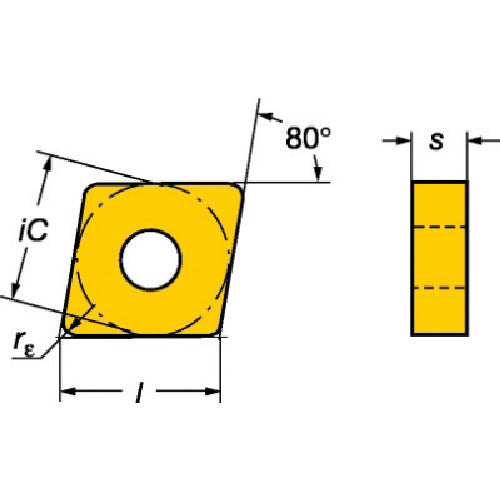

Catalog number: CNMG 12 04 04-KF Features: ●CVD-coated carbide material with excellent wear resistance and heat resistance. Applications: ●For general turning and cast iron processing. ●For finishing and rough processing. Specifications: ●Suitable workpiece: K ●Insert shape: Diamond 80° ●Effective cutting edge length LE (mm): 12.4959 ●Inscribed circle IC (mm): 12.7 ●Thickness S (mm): 4.7625 ●Corner radius RE (mm): 0.3969 ●Hole diameter D1 (mm): 5.156 ●Main relief angle AN (°): 0 ●Coating: TiCN+Al2O3+TiN ●Processing type: Finishing ●Breaker: KF ●Thickness (mm): 4.7625 ●Blade length (mm): 12.4959 ●Insert relief angle (°): 0 ●Processing form: Finishing cutting ●CVD coating
