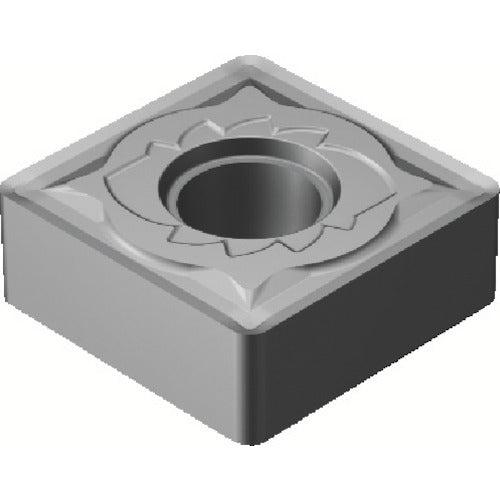

Sandvik T-Max P turning negative insert (110) S05F SNMG 19 06 16-SMR 10 pieces

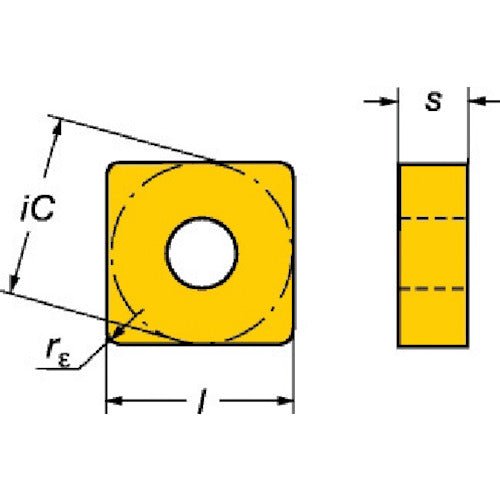

Catalog number: SNMG 19 06 16-SMR Features: ● Can be used for high-speed finishing of heat-resistant alloys, or for low-speed long-term machining and rough machining. Applications: ● For general turning and machining of heat-resistant alloys. Specifications: ● Suitable workpiece: S ● Insert shape: Square ● Effective cutting edge length LE (mm): 12.7 ● Inscribed circle IC (mm): 19.05 ● Thickness S (mm): 6.35 ● Corner radius RE (mm): 1.5875 ● Hole diameter D1 (mm): 7.925 ● Main relief angle AN (°): 0 ● Coating: TiCrN + Al2O3 + TiN ● Machining type: Roughing ● Breaker: SMR ● Thickness (mm): 6.35 ● Blade length (mm): 12.7 ● Insert relief angle (°): 0 ● Machining form: Rough cutting ● CVD coated carbide material
