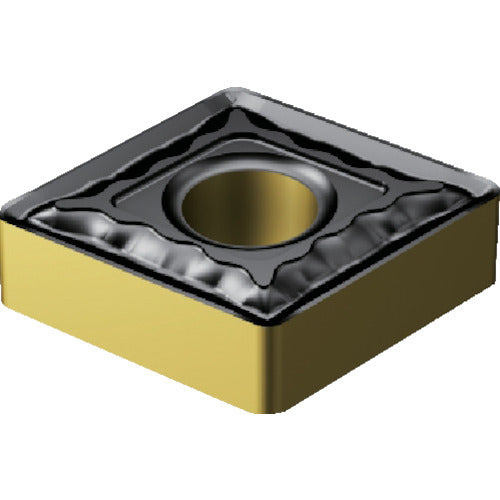

Sandvik T-Max P turning negative insert (112) 4415 CNMG 09 03 08-QM 10 pieces

Catalog number: CNMG 09 03 08-QM Features: ● Material type ideal for machining requiring heat resistance. Applications: ● For turning steel. ● For rough to finishing machining. Specifications: ● Suitable workpiece: PK ● Insert shape: Diamond 80° ● Effective cutting edge length LE (mm): 8.8719 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.175 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: QM ● Thickness (mm): 3.175 ● Blade length (mm): 8.8719 ● Insert relief angle (°): 0 ● Machining form: Medium cutting ● CVD coating
