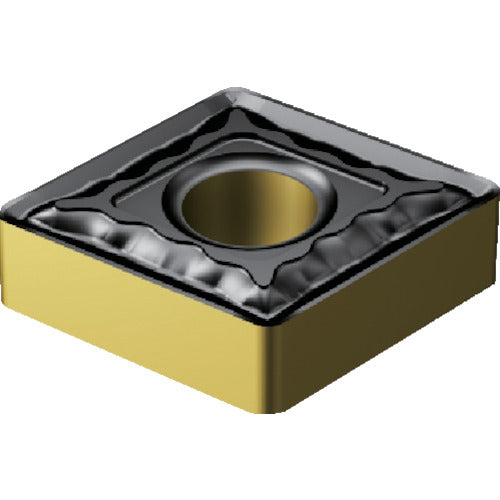

Sandvik T-Max P turning negative insert (112) 4425 CNMG 09 03 08-QM 10 pieces

Catalog number: CNMG 09 03 08-QM Features: ● Suitable for most steel turning applications. ● New base material combines resistance to plastic deformation with good toughness for improved reliability. Increasing the cobalt content towards the surface improves stability. Applications: ● For turning steel applications. ● For rough to finish applications. Specifications: ● Suitable workpiece material: PK ● Chip shape: diamond 80° ● Effective cutting edge length LE (mm): 8.8719 ● Inscribed circle IC (mm): 9.525 ● Thickness S (mm): 3.175 ● Corner radius RE (mm): 0.7938 ● Hole diameter D1 (mm): 3.81 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Medium ● Breaker: QM ● Thickness (mm): 3.175 ● Blade length (mm): 8.8719 ● Chip relief angle (°): 0 ● Machining type: Medium cutting ● CVD coating
