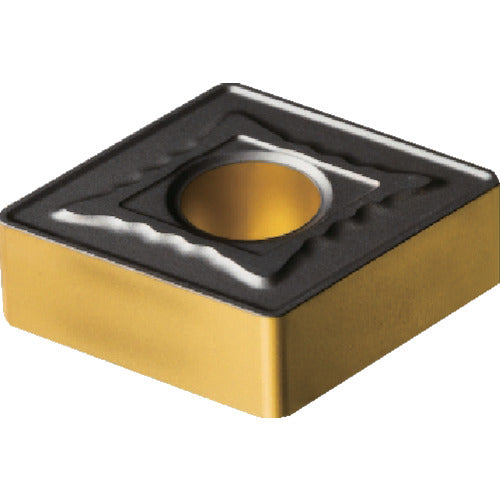

Sandvik T-Max P turning negative insert (112) 4425 CNMG 12 04 12-MR 10 pieces

Catalog number: CNMG 12 04 12-MR Features: ● Suitable for most steel turning applications. ● New base material combines resistance to plastic deformation with good toughness for improved reliability. Increasing the cobalt content towards the surface improves stability. Applications: ● For turning steel applications. ● For rough to finish applications. Specifications: ● Suitable workpiece material: PK ● Chip shape: diamond 80° ● Effective cutting edge length LE (mm): 11.6959 ● Inscribed circle IC (mm): 12.7 ● Thickness S (mm): 4.7625 ● Corner radius RE (mm): 1.1906 ● Hole diameter D1 (mm): 5.156 ● Main relief angle AN (°): 0 ● Coating: TiCN + Al2O3 + TiN ● Machining type: Roughing ● Breaker: MR ● Thickness (mm): 4.7625 ● Blade length (mm): 11.6959 ● Chip relief angle (°): 0 ● Machining type: Rough cutting ● CVD coating
